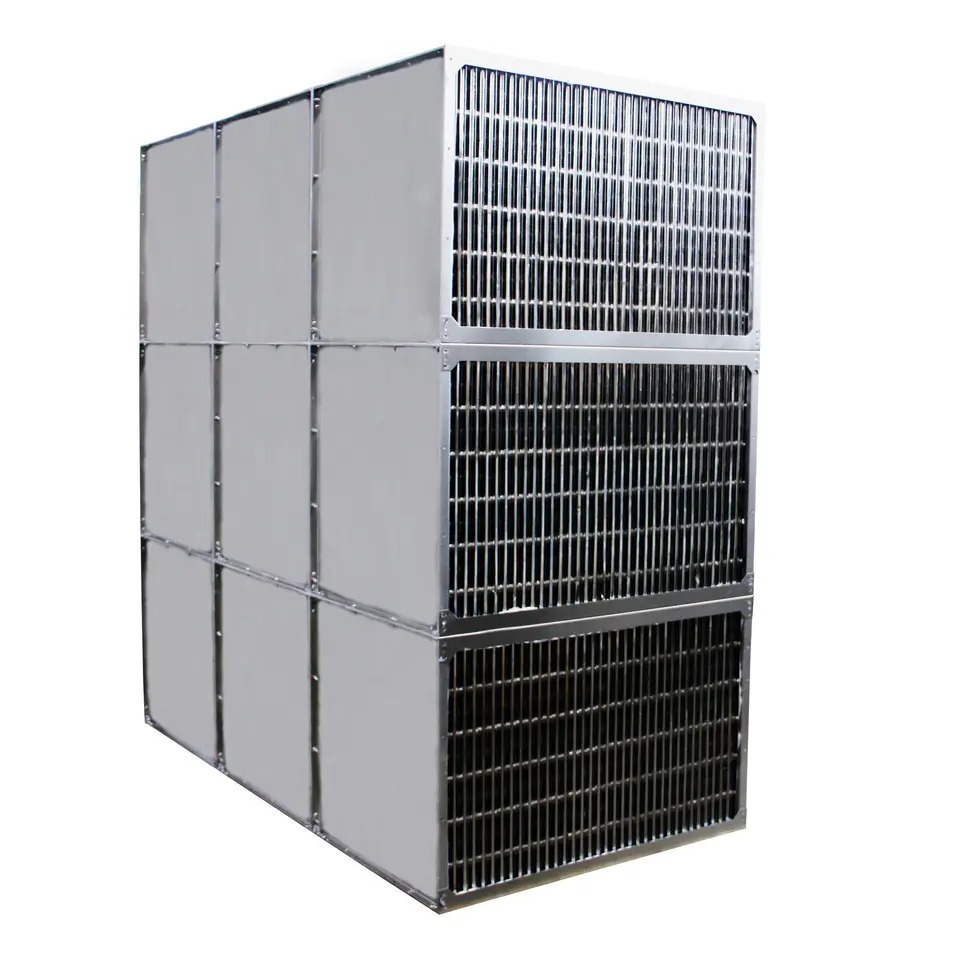

CROSSFLOW PLATE FIN HEAT EXCHANGER
Working principle
The flat plates and the corrugated plates form channels for flesh or exhaust air stream When the two an” steams passing through the exchanger crossly with temperature difference, the energy is recovered.
Main features
- Sensible and total heat recovery.
- Made of ZENCO 3rd generation E.R. paper
- Structured with flat plate and corrugated plate.
Description
Applications
- Direct an” to an’ energy exchange.
- Ideal for both residential and commercial application.
- Suitable for airflow’ 300-60000m3,h.
Installation patterns:
Pattern 1 and 2, to increase the heat exchange area, suitable for occasions requiring higher heat recovery efficiency, however, air resistance will increase accordingly.
Pattern 3 and 4, to increase the front face area, suitable for occasions requiring large airflow, both air resistance and heat recovery efficiency remain stable.
Pattern 5. to increase both front face area and heat exchange area, suitable occasions requiring higher heat recovery efficiency and large airflow.
